Dispersion: Rainbows and Prisims

Dispersion is defined as the spreading of white light into its full spectrum of wavelengths.

Learning Objective

  • Describe production of rainbows by a combination of refraction and reflection processes


Key Points

    • Dispersion occurs whenever there is a process that changes the direction of light in a manner that depends on wavelength. Dispersion can occur for any type of wave and always involves wavelength-dependent processes.
    • For a given medium, n increases as wavelength decreases and is greatest for violet light. Thus violet light is bent more than red light, as can be seen with a prism.
    • In a rainbow, light enters a drop of water and is reflected from the back of the drop. The light is refracted both as it enters and as it leaves the drop.

Term

  • refraction

    Changing of a light ray's direction when it passes through variations in matter.


Full Text

We see about six colors in a rainbow—red, orange, yellow, green, blue, and violet; sometimes indigo is listed, too. These colors are associated with different wavelengths of light. White light, in particular, is a fairly uniform mixture of all visible wavelengths. Sunlight, considered to be white, actually appears to be a bit yellow because of its mixture of wavelengths, but it does contain all visible wavelengths. The sequence of colors in rainbows is the same sequence as the colors plotted versus wavelength . What this implies is that white light is spread out according to wavelength in a rainbow. Dispersion is defined as the spreading of white light into its full spectrum of wavelengths. More technically, dispersion occurs whenever there is a process that changes the direction of light in a manner that depends on wavelength. Dispersion, as a general phenomenon, can occur for any type of wave and always involves wavelength-dependent processes.

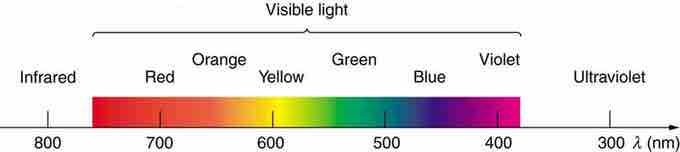

Colors of a Rainbow

Even though rainbows are associated with seven colors, the rainbow is a continuous distribution of colors according to wavelengths.

Refraction is responsible for dispersion in rainbows and many other situations. The angle of refraction depends on the index of refraction, as we saw in the Law of Refraction. We know that the index of refraction n depends on the medium. But for a given medium, n also depends on wavelength. Note that, for a given medium, n increases as wavelength decreases and is greatest for violet light. Thus violet light is bent more than red light and the light is dispersed into the same sequence of wavelengths .

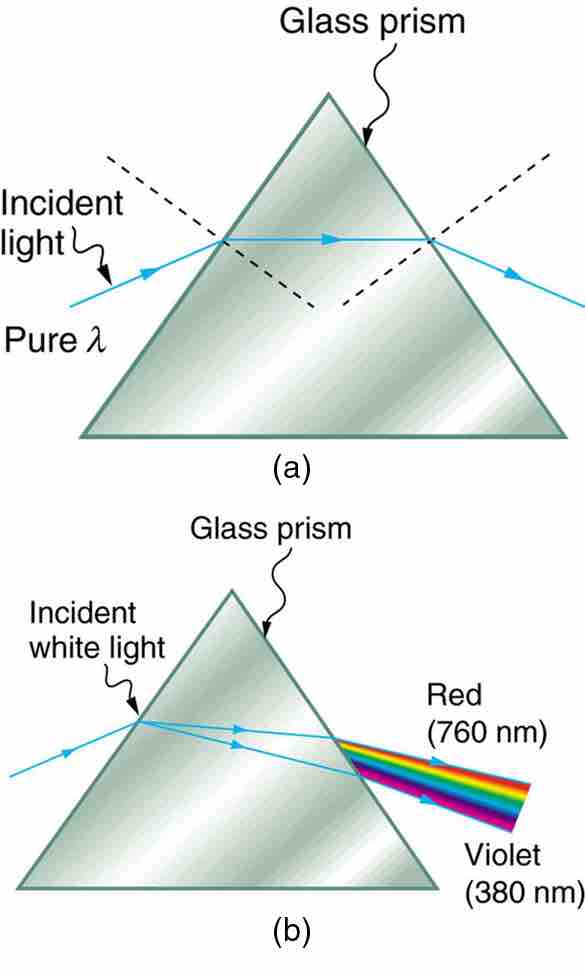

Pure Light and Light Dispersion

(a) A pure wavelength of light falls onto a prism and is refracted at both surfaces. (b) White light is dispersed by the prism (shown exaggerated). Since the index of refraction varies with wavelength, the angles of refraction vary with wavelength. A sequence of red to violet is produced, because the index of refraction increases steadily with decreasing wavelength.

Rainbows are produced by a combination of refraction and reflection. You may have noticed that you see a rainbow only when you look away from the sun. Light enters a drop of water and is reflected from the back of the drop . The light is refracted both as it enters and as it leaves the drop. Since the index of refraction of water varies with wavelength, the light is dispersed, and a rainbow is observed. (There is no dispersion caused by reflection at the back surface, since the law of reflection does not depend on wavelength. ) The actual rainbow of colors seen by an observer depends on the myriad of rays being refracted and reflected toward the observer's eyes from numerous drops of water. The arc of a rainbow comes from the need to be looking at a specific angle relative to the direction of the sun.

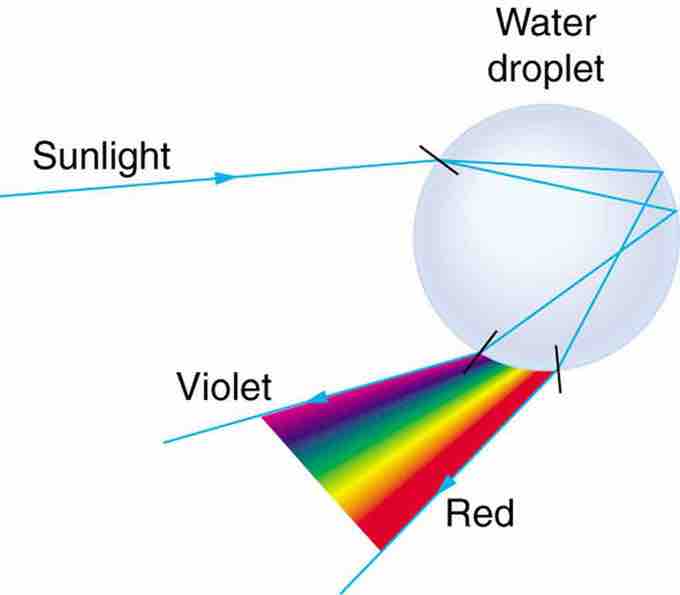

Light Reflecting on Water Droplet

Part of the light falling on this water drop enters and is reflected from the back of the drop. This light is refracted and dispersed both as it enters and as it leaves the drop.
