Concept Version 12
Created by Boundless

Solving Systems of Linear Inequalities

Solving for a system of linear inequalities requires finding values for each of the variables such that all equations are satisfied.

Learning Objective

  • Solve systems of linear inequalities using graphical and non-graphical methods


Key Points

    • To solve a system graphically, draw and shade in each of the inequalities on the graph, and then look for an area in which all of the inequalities overlap. This area is the solution. If there is no area in which all of the inequalities overlap, then the system has no solution.
    • To solve a system non-graphically, find the intersection points, and then find out, relative to those points, which values still hold for the inequality. Narrow down these values until mutually exclusive ranges (no solutions) are found, or not, in which case, the solution is within your final range.

Terms

  • mutually exclusive

    Describing multiple events or states of being, such that the occurrence of any one implies the non-occurrence of all the others.

  • system of inequalities

    A set of inequalities with multiple variables, often solved with a particular specification of the values of all variables that simultaneously satisfies all of the inequalities.

  • subset

    With respect to another set, a set such that each of its elements is also an element of the other set.


Full Text

A system of inequalities is a set of inequalities with multiple variables, often solved with a particular specification of of the values of all variables that simultaneously satisfies all of the inequalities. A system of inequalities can be solved graphically and non-graphically.

Graphical Method

Often the easiest way to solve a system of linear inequalities is by graphing. However, graphing is only possible if there are two or three variables in the system.

When using the graphical method for two variables, first plot all of the lines representing the inequalities, drawing a dotted line if it is either < or >, and a solid line if it is either $\leq$ or $\geq$. Shade, or indicate with hash marks, the area that corresponds to the inequality. For instance, if it is < or $\leq$, shade in the area below the line. If it is > or $\geq$ shade in the area above the line.

Once all of the inequalities have been drawn and shaded in, the solution to the system is the area in which all of the inequalities overlap each other. For example, given the system:

$\left\{\begin{matrix} \begin {aligned} y &\geq -2x-1 \\ y &\geq 2x+1 \\ y &\leq x+2 \end {aligned} \end{matrix}\right.$

Draw each of the lines and shade in, or indicate, their corresponding inequalities, and then look to see what parts overlap. The shaded part in the middle is where all three inequalities overlap.

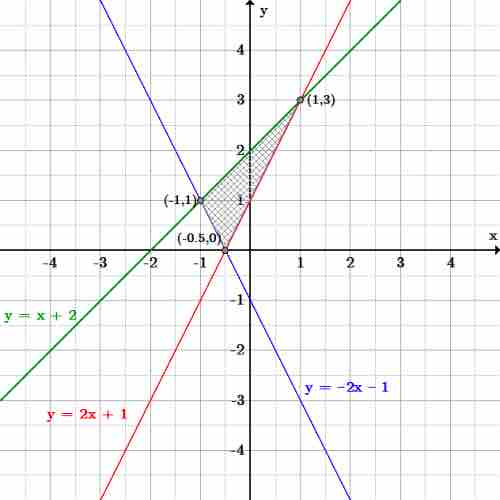

System of inequalities

Three lines are graphed, with the area that satisfies all three inequalities shaded.

If all of the inequalities of a system fail to overlap over the same area, then there is no solution to that system. For instance, given the following system:

$\left\{\begin{matrix} \begin {aligned} y &\geq 1 \\ y &\geq 2x+2 \\ y &\leq x+1 \end {aligned} \end{matrix}\right.$

Again, draw all the inequalities and shade in the area that each inequality covers.

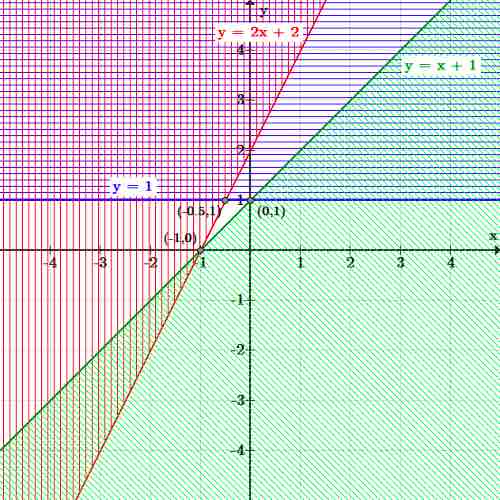

System of inequalities with no solution

Three inequalities are graphed. There is no area which is shaded by all three inequalities, so the system of inequalities has no solution.

Notice that in this graph, there is no part of the graph where all three inequalities overlap. There are plenty of areas where two of the three overlap at a time, but all three must overlap for those points to be a solution to the system.

Non-Graphical Method

Sometimes one may not wish to graph the equations, or simply cannot, due to the number of variables. In this situation, find intervals in which certain variables satisfy the system by looking at two equations at a time. This is referred to as the non-graphical method.

First, find the intersection point(s) of two of the equations. If there is no intersection, then the two inequalities are either mutually exclusive, or one of the inequalities is a subset of the other. For a simple example, $x>2$ and $x<1$ are mutually exclusive, whereas $x>2$ and $x>1$ has $x>2$ as a subset of $x>1$. If they are mutually exclusive, then there is no solution.

To find the intersection point of this system:

$\left\{\begin{matrix} \begin {aligned} y &\geq -2x \\ y &\leq x+1 \end {aligned} \end{matrix} \right.$

first, substitute for $y$ and solve for $ x$:

$\begin {aligned} x+1 &\geq -2x \\ 3x &\geq -1 \\ x &\geq -\frac {1}{3} \end {aligned}$

Then, substitute a value for $x$ into each inequality to see that it is true. For example, with $x=0$,  the first equation yields $y \geq 0$, and the second yields $y \leq 1$ . Since these two equations are not mutually exclusive, these two equations are satisfied for any $x \geq -\frac{1}{3}$.

The non-graphical method is much more complicated, and is perhaps much harder to visualize all the possible solutions for a system of inequalities. However, when you have several equations or several variables, graphing may be the only feasible method.
