Construction Equipment Visibility
Cat 446B
Cat 446B
| GVW: | 19,603 lbs. |
|---|---|
| Machine Dimensions: | 11' 10" wide 26' 4" long |
| Operator Enclosure: | Closed ROPS |
| Attachments: | None |
| Other Information: | None |
| Measurement Technique: | Physical |
Click on image to enlarge.
Ground Level
800 x 914 | 1024 x 1170

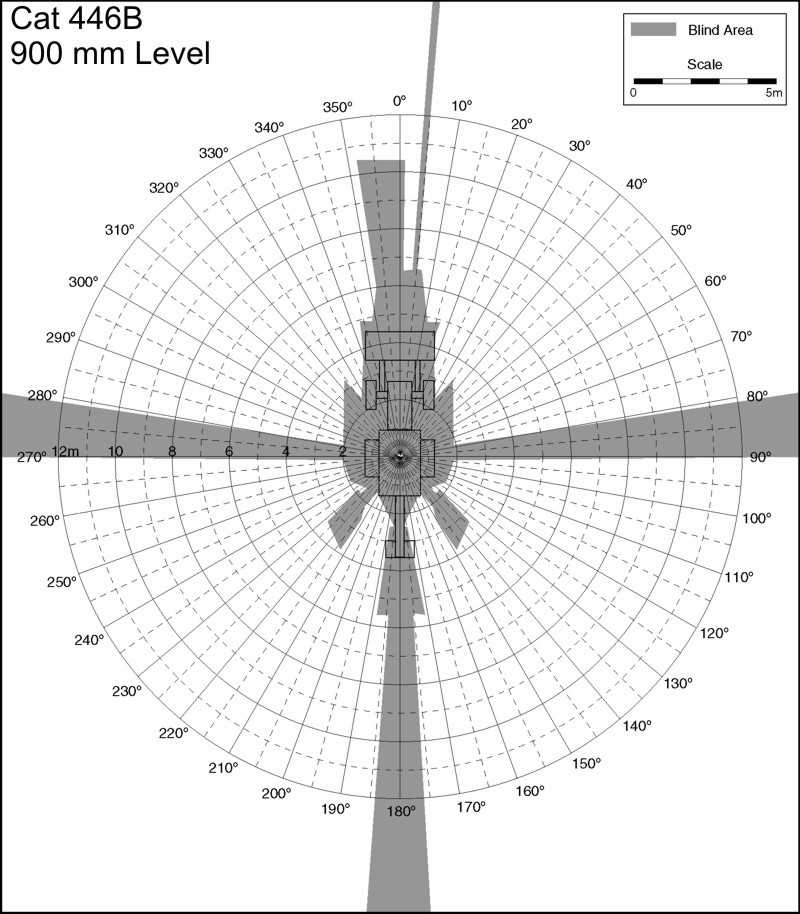

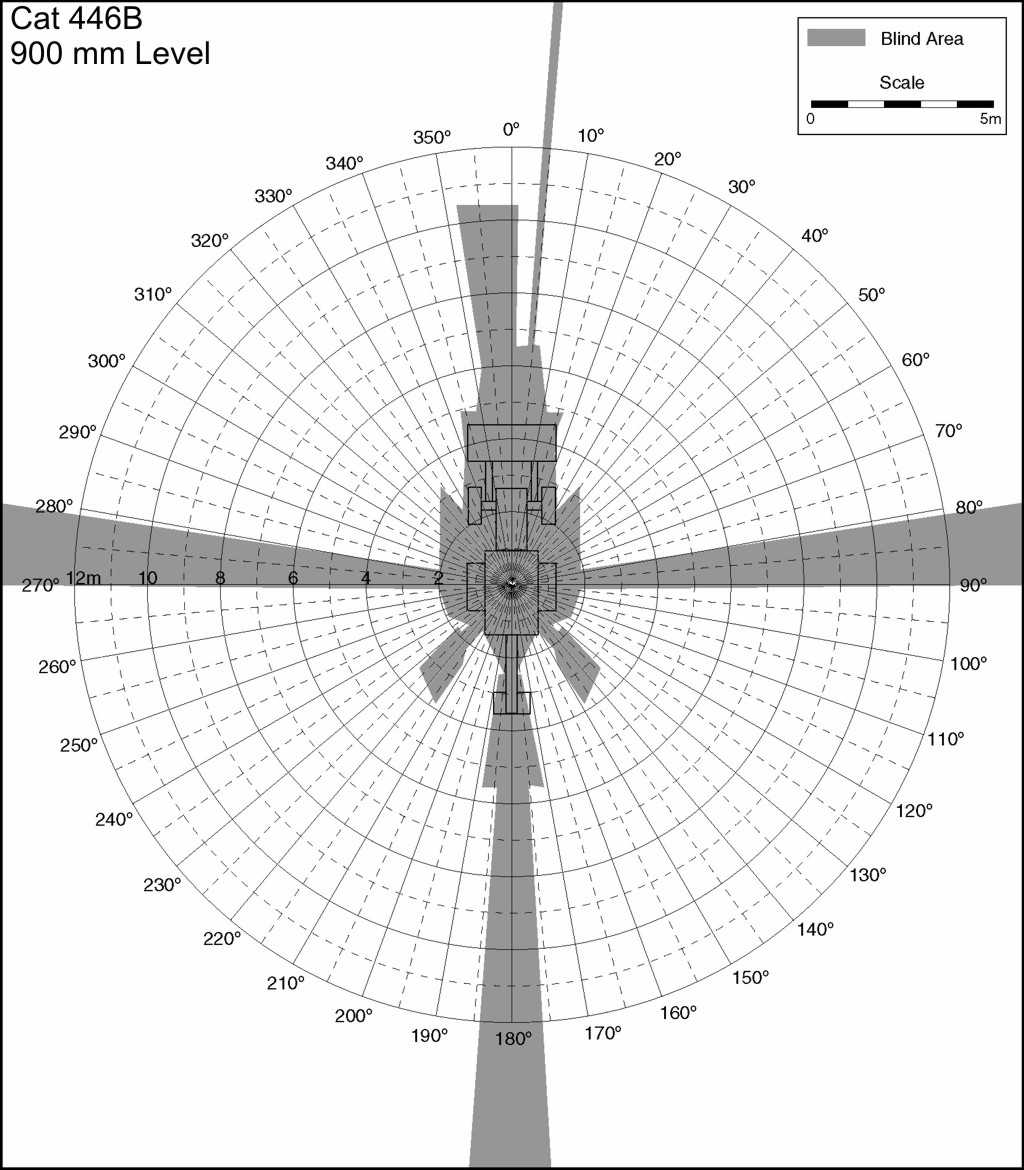

900mm Level
800 x 914 | 1024 x 1170

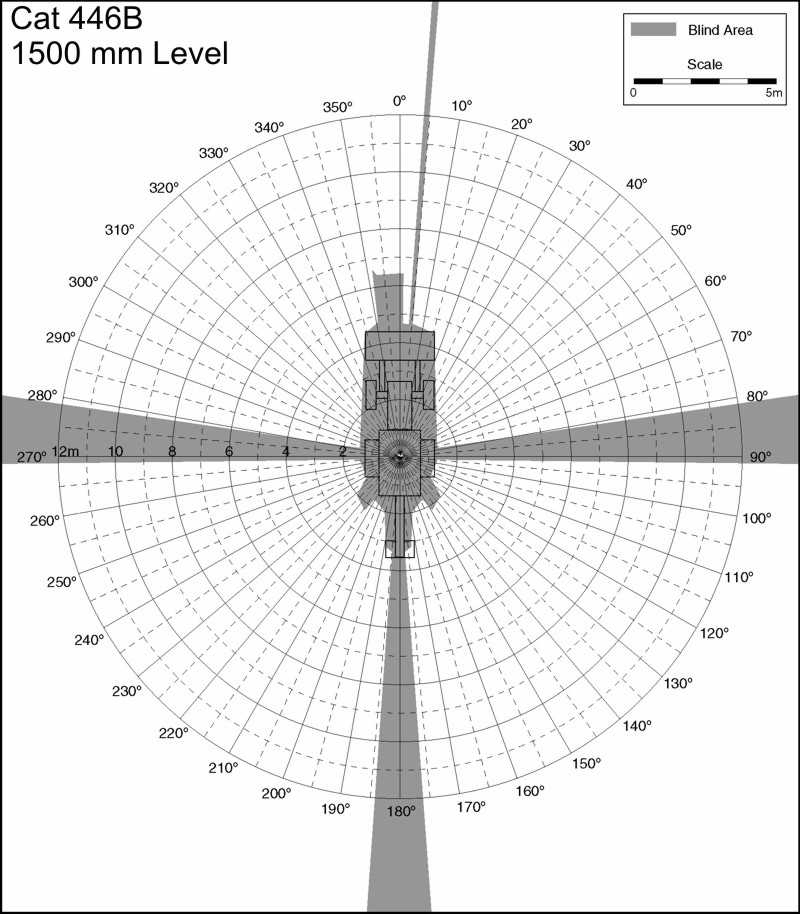

1500mm Level
800 x 914 | 1024 x 1170
