HIGHWAY WORK ZONE SAFETY

Construction Equipment Visibility

Sterling 9511

Sterling 9511

Sterling 9511
GVW: 58,000 lbs.
Machine Dimensions: 8′ wide 27′ long
Operator Enclosure: Enclosed
Attachments: None
Other Information: None
Measurement Technique: Physical

Click on image to enlarge.

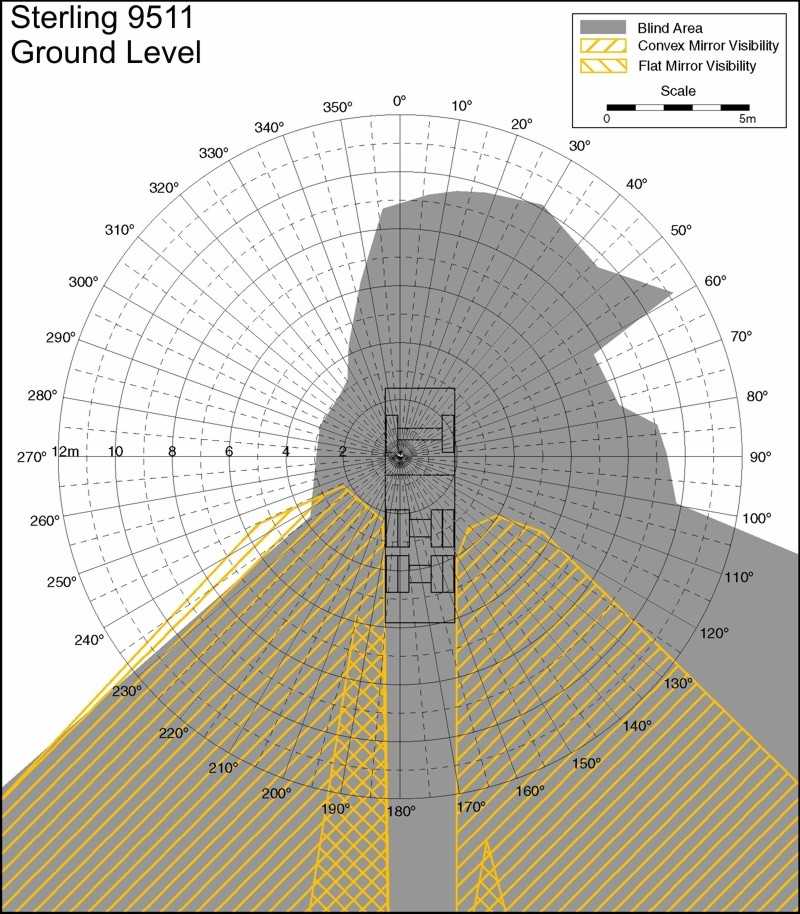

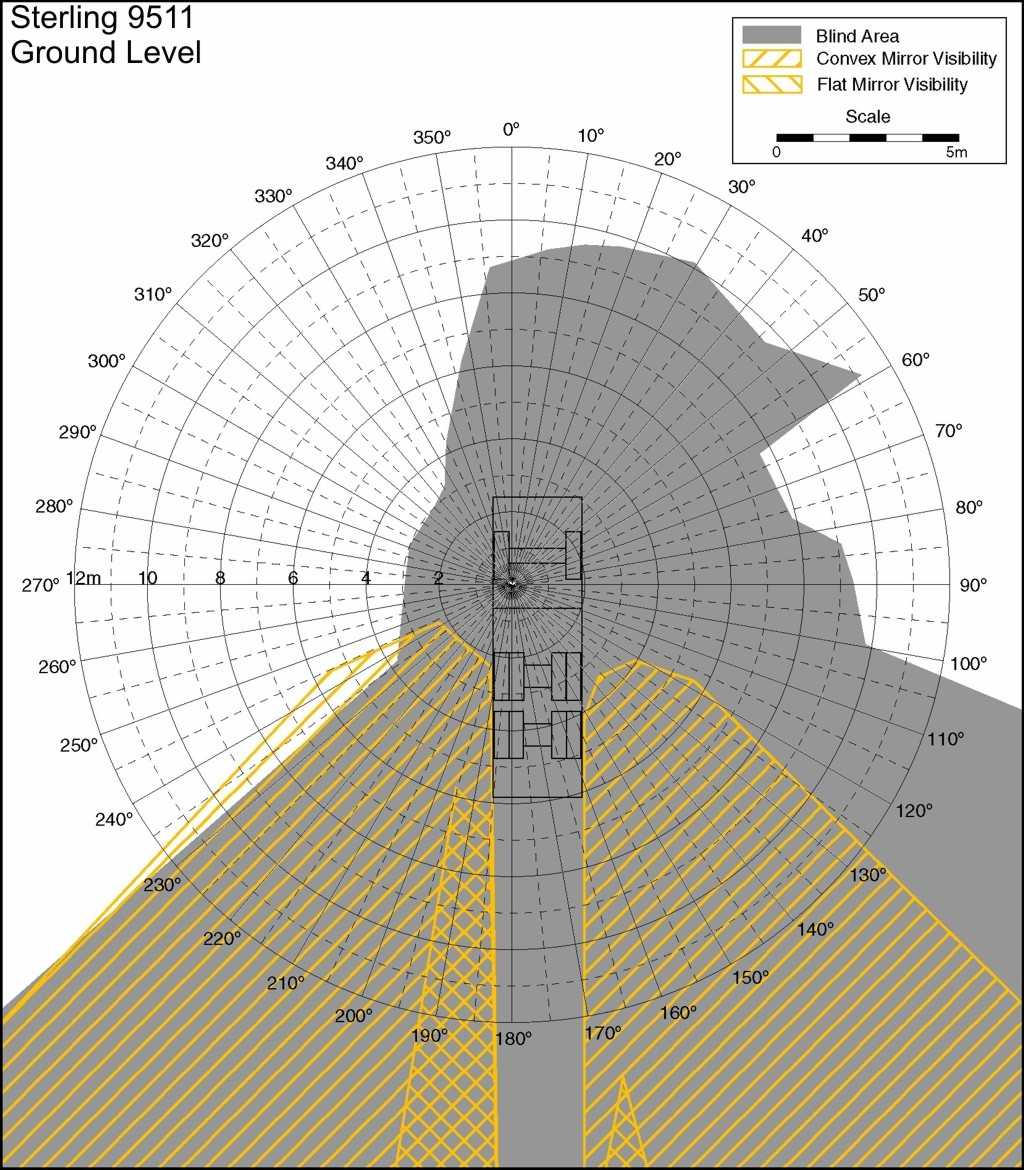

Blind Area Diagram for Sterling 9511 at Ground Level

Ground Level
800 x 914 | 1024 x 1170

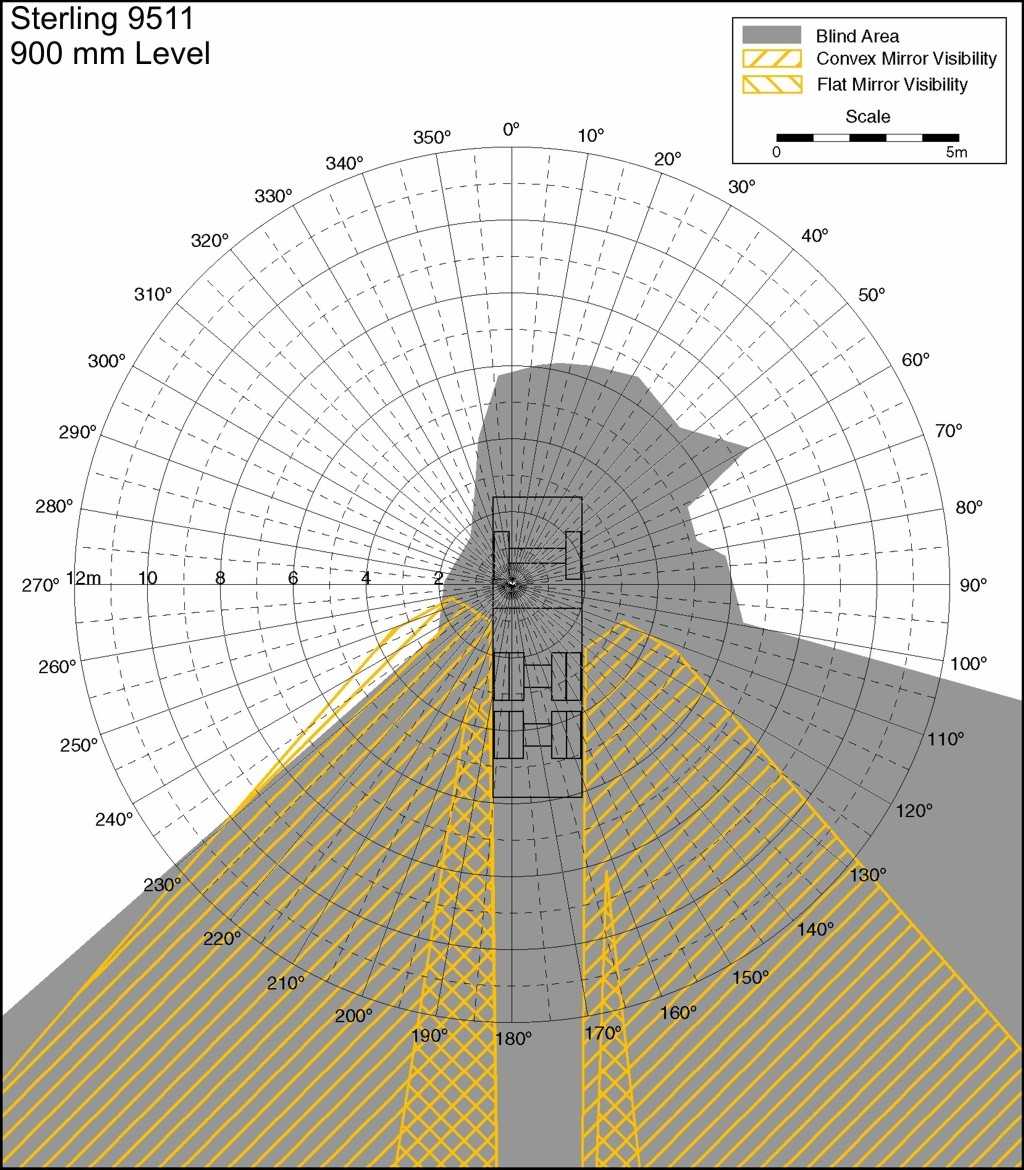

Blind Area Diagram for Sterling 9511 at 900mm Level

barrel 900mm Level
800 x 914 | 1024 x 1170

Blind Area Diagram for Sterling 9511 at 1500mm Level

construction worker 1500mm Level
800 x 914 | 1024 x 1170
