Overview of Electric Current

Simple Electric Circuit

Simple Electric Circuit

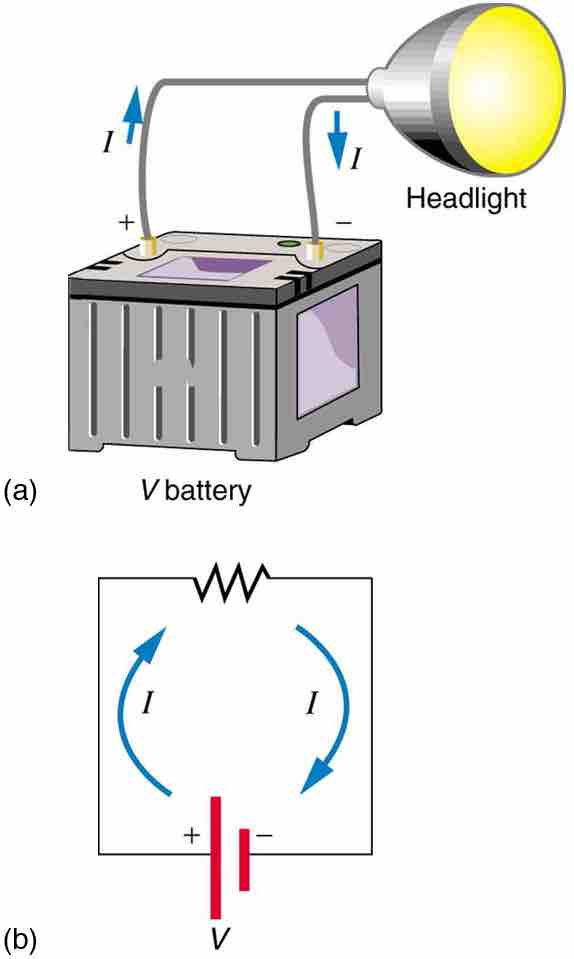

(a) A simple electric circuit. A closed path for current to flow through is supplied by conducting wires connecting a load to the terminals of a battery. (b) In this schematic, the battery is represented by the two parallel red lines, conducting wires are shown as straight lines, and the zigzag represents the load. The schematic represents a wide variety of similar circuits.

Source

    Boundless vets and curates high-quality, openly licensed content from around the Internet. This particular resource used the following sources:

    "OpenStax College, College Physics. October 19, 2012."
    http://cnx.org/content/m42341/latest/?collection=col11406/1.7 OpenStax CNX CC BY 3.0.
