AC Circuit Lacking Safety Features

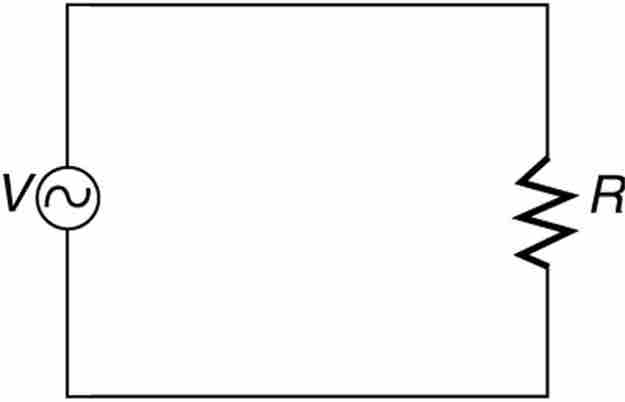

A schematic of a simple AC circuit with a voltage source and a single appliance represented by the resistance R. It lacks safety features.
