Charging a Battery: EMFs in Series and Parallel

Two Identical EMFs

Two Identical EMFs

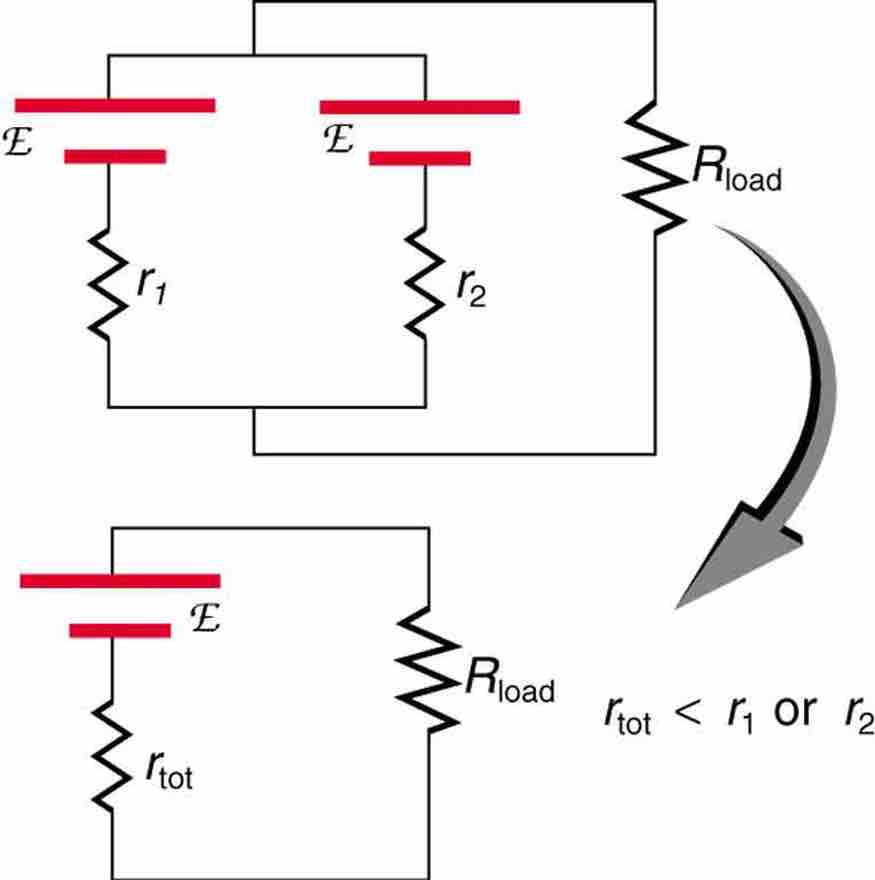

Two voltage sources with identical emfs (each labeled by script E) connected in parallel produce the same emf but have a smaller total internal resistance than the individual sources. Parallel combinations are often used to deliver more current.

Source

    Boundless vets and curates high-quality, openly licensed content from around the Internet. This particular resource used the following sources:

    "OpenStax College, College Physics. November 7, 2012."
    http://cnx.org/content/m42357/latest/?collection=col11406/1.7 OpenStax CNX CC BY 3.0.
