Two-hybrid screening

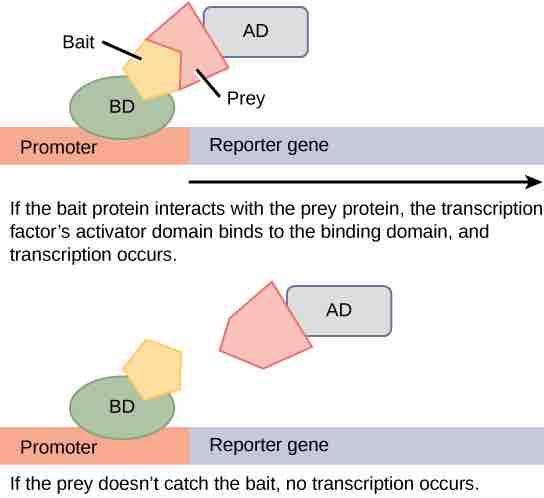

Two-hybrid screening is used to determine whether two proteins interact. In this method, a transcription factor is split into a DNA-binding domain (BD) and an activation domain (AD). The binding domain is able to bind the promoter in the absence of the activator domain, but it does not turn on transcription. A protein called the bait is attached to the BD, and a protein called the prey is attached to the AD. Transcription occurs only if the prey "catches" the bait.
Source
Boundless vets and curates high-quality, openly licensed content from around the Internet. This particular resource used the following sources:
"OpenStax College, Genomics and Proteomics. October 16, 2013."
http://cnx.org/content/m44558/latest/Figure_17_05_01.jpg
OpenStax CNX
CC BY 3.0.
