Working with Charts

Chart tools

Once you insert a chart, a new set of Chart Tools, arranged into three tabs, will appear above the Ribbon. These are only visible when the chart is selected.

Select Data for Chart

To change the chart type:

  • Select the Design tab.
  • Click the Change Chart Type command. A dialog box appears.
Change Chart Type



  • Select another chart type.
  • Click OK.

The chart in the example compares each salesperson's monthly sales to his or her other months' sales; however, you can change what is being compared. Just click the Switch Row/Column Data command, which will rotate the data displayed on the x and y axes. To return to the original view, click the Switch Row/Column command again.

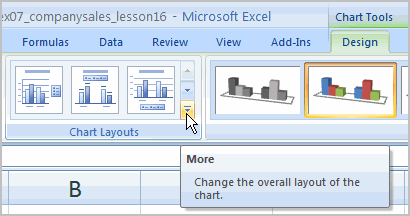

To change chart layout:

  • Select the Design tab.
  • Locate the Chart Layouts group.
  • Click the More arrow to view all of your layout options.
Change Chart Layout



  • Left-click a layout to select it.

If your new layout includes chart titles, axes, or legend labels, just insert your cursor into the text and begin typing to add your own text.
