Problem-Solving With Friction and Inclines

Combining motion on inclines with friction uses such concepts as equilibrium and contact force on an incline.

Learning Objective

  • Calculate the force of friction on an incline


Key Points

    • Motion on an incline is resisted by friction.
    • The frictional force on an incline is dependent on the angle of the incline. Ff=μmgcos(θ)F_f = \mu mg \cos(\theta)F​f​​=μmgcos(θ) is the maximum friction force on an incline.
    • If the friction force is greater than or equal to the forces in the direction of motion, then the net force is 0 and the object is in equilibrium.

Terms

  • friction

    A force that resists the relative motion or tendency to such motion of two bodies in contact.

  • incline

    A slope.

  • equilibrium

    The state of a body at rest or in uniform motion, the resultant of all forces on which is zero.


Full Text

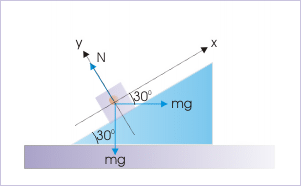

Contact Force on an Incline

The incline plane has two contact or interface surfaces. One is the incline surface, where the block is placed and the other is the base of the incline, which is in contact with the surface underneath. The motion of the block, therefore, may depend on the motion of the incline itself.

Block and incline system

Forces on the block

When on an incline, calculating the force of friction is different than when the object is on a level surface. Recall that the force of friction depends on both the coefficient of friction and the normal force. Ff=μFnF_f = \mu F_nF​f​​=μF​n​​ When on an incline with an angle θ\thetaθ, the normal force becomes Fn=mgcos(θ)F_n=mg\cos(\theta)F​n​​=mgcos(θ)

As always, the frictional force resists motion. If the block is being pushed up the incline the friction force points down the incline. If the block is being pulled down the incline, the friction force will hold the block up.

Equilibrium of Forces on an Incline

When not acted on by any other forces, only by gravity and friction, the frictional force will resist the tendency of the block to slide down the incline. If the frictional force is equal to the gravitational force the block will not slide down the incline. The block is said to be in equilibrium since the sum of the forces on it is 0.

Gravitational force down an incline is given by mgsin(θ)mg\sin(\theta)mgsin(θ).

Where θ\thetaθ is the angle the incline makes with the horizontal. For the block to be in equilibrium, the maximum force of friction Ff=μmgcos(θ)F_f = \mu mg\cos(\theta)F​f​​=μmgcos(θ) must be greater than or equal to FG=mgsin(θ)F_G = mg\sin(\theta)F​G​​=mgsin(θ). If the maximum frictional force is greater than the force of gravity, the sum of the forces is still 0. The force of friction can never exceed the other forces acting on it. The frictional forces only act to counter motion.
